Clinical-Grade Accuracy, Consumer-Ready Simplicity

Discover how the SnugFit O&P 3D Scanner delivers clinical-grade accuracy through two powerful 3D scan modules—FaceID sensor–based and rear camera–based scanning.

Dual Scan Modes. Unified Precision



The SnugFit O&P 3D Scanner app includes two scan modules to meet diverse needs across clinical and consumer settings:

  • Front FaceID Sensor–Based 3D Scan: Leverages Apple’s TrueDepth camera for high-accuracy scanning.

  • Rear Video Camera–Based 3D Scan: Enables 3D capture using just the standard iPad camera—no external hardware required.

Each module has been thoroughly tested to ensure it meets the accuracy requirements of orthotics, prosthetics, and custom-fit product applications.

FaceID Sensor-Based 3D Scan

To measure performance, we used a ground truth 3D model obtained with an industrial 3D scanner (accuracy up to 10 microns). Each target was scanned 10+ times to ensure repeatability. The SnugFit O&P scanner then scanned the same target, and results were compared by computing mean error, variance, and visual slice overlays.



Test Platforms:  iPhone 12, iPad Pro 11” (2nd Gen)

Test Models: Anatomical foot model, Upper torso model

Results Summary:

Model         Average Error    Mean Variance
Foot Model    < 0.4 mm           < 0.4 mm
Torso Model    < 0.5 mm          < 0.7 mm



Rear Camera–Based 3D Scan Evaluation

A. Real Foot Repeatability Test

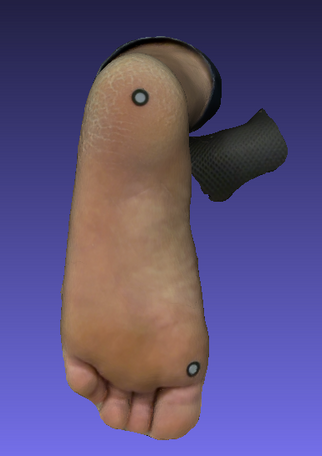

We scanned a real human foot 23 times using the SnugFit rear-camera scan module on a regular iPad (M4) (Note: All Apple devices have the same performance). Two physical markers were used to determine the ground truth foot length: 163.5 mm.

Test Results (in mm):
162.4, 164.2, 160.7, 161.1, 165.3, 163.8, 164.9, 163.8, 161.7, 163.8,
162.0, 164.2, 162.0, 163.3, 163.7, 162.8, 161.0, 163.4, 164.5, 165.6,
163.8, 164.5, 165.5

Mean Error: -0.3 mm
Standard Deviation: 1.7 mm

B. Foot Phantom 3D Overlay Test

We used an industrial 3D scanner to obtain high-accuracy (0.1 mm) foot phantom data, then overlaid it with the 3D data from the rear camera scan module.

Test Results:

  • Mean Error: –0.15 mm

  • Standard Deviation: 0.76 mm

This confirms that the rear camera–based scan module can deliver sub-millimeter accuracy for practical applications using only a regular iPad.
